IPSC overlay in OBS Studio — complete live broadcast guide

Q: Where do I configure overlay before going live?

At /my-account/practiscore → Edit → Overlay config or Set up overlay. OBS step by step: /pages/overlay-obs-studio.

OBS Studio is the most widely used app for IPSC clubs and federations streaming to YouTube, Facebook and Twitch. With Scoring Services you do not edit scoreboards by hand: PractiScore tablets send every score, the match hotsite updates rankings and the transparent OBS overlay shows last shooter, leaderboard and top bar — all in real time, stage by stage, from warm-up to the final stage.

PractiScore → OBS workflow shortcuts

Match management

Edit the match, open Overlay config or Set up overlay and copy the URL.

/my-account/practiscore

Live scoreboard (athletes)

Same data as the overlay — follow on your phone during the match.

m.scoring.services

Full PractiScore guide

Installation, tablets, sync and WinMSS export.

PS-Leaderboard

Per-stage wizard — from selector to OBS URL

Stage selector — 4-stage match, max points per stage, each stage UUID and Configure Overlay button to generate the OBS URL

Selected stage preview — top bar with Light and Mini Rifle divisions, CCP Open top-3 widget (A/C) and Match/Stage ID footer

Per-stage config — 1 s poll interval, 10 s bottom bar, sidebar and top bar enabled; note about logo in match settings

Scroll speeds (leaderboard 0.5 / top bar 0.3), bottom bar position, config summary chips and generated URL with Copy button

Overlay visual components — leaders ticker on top, CCP Open top 3 with A/C and stage result card (points, time, HF, penalties)

Scene panel — per-stage control for OBS

Per-stage panel — apply scene to all stages; Stage 1–4 cards with Full broadcast, HUD only, Break and Warm-up; OBS URL, Open, Health and Config buttons

Overlay control desk — Replay status, 4/4 stages OK, default preset, sync warnings and buttons to apply a global scene on stream

Advanced IPSC overlay configuration

Preview with OBS safe areas — scrolling top bar, side cards, LIVE last-shooter panel (HF, A/C/D, time) and dashed 1920×1080 guides

Preview with Simulate scoring — LIVE shooter card (points, time, HF, A/C/D), top bar and CCP Open widget; Pause and Full Screen buttons

Presets and ready scenes — save preset, Full broadcast, HUD only, Break and Warm-up; Monitoring, Sponsors and Health check cards

Advanced broadcast — Push SSE (lower latency), 720p–4K scaling, ranking position delta (8 s), last 5 shooters ticker and poll intervals

Display control — top bar layout, ranking scope (combined or stage), athletes per division and sidebar, sponsor and context band toggles

Dark color scheme, sidebar size (380 px × 30%) and top bar (100 px), leaderboard scroll (0.5) and top bar scroll (0.3) speeds

Set up Browser Source in OBS Studio

1. Prepare the match in PractiScore
Install ps-leaderboard (Installation guide), pair tablets and confirm the match appears at PractiScore management with active sync. Without data reaching the hotsite, the overlay will be blank.
2. Generate the overlay URL
At PractiScore management → Edit → Set up overlay, pick a stage and adjust sidebar, top bar, colors and logo in the preview. Copy the URL at the bottom of the wizard. IPSC variant: .../stage/{stage_id}/overlay.
3. Add source in OBS
In OBS: Add → Browser Source → paste the URL, width 1920, height 1080, disable “Control audio via OBS” and enable “Transparent background”. Place the source above the camera or video cut.
4. Use the scene panel
On the match hotsite, open the per-stage scene panel to switch between Full broadcast, HUD only, Break and Warm-up without editing the URL in OBS. Each stage has a “OBS URL” button to copy the correct link.
5. Match before going live
Use “Simulate scoring” in the overlay preview and check that the scoreboard at https://m.scoring.services/ updates. Only then start the YouTube or other platform stream — see OBS Studio overlay.

vMix, Streamlabs and Prism

vMix and Streamlabs: use the same overlay URL in a Browser/Web source — transparent background, 1920×1080.
Prism (Android/iPhone): open the generated URL in the app for mobile lives with the same data.
Arena screen at the range: use kiosk mode at https://m.scoring.services/ alongside the live stream.

PractiScore overlay YouTube — live IPSC broadcast with dynamic scoreboard

PractiScore overlay YouTube guide: how to broadcast IPSC matches with a dynamic OBS scoreboard fed by tablets via ps-leaderboard. If you searched for a PractiScore live overlay on YouTube, here is the workflow — range scoring, transparent OBS URL, rankings and last shooter updating on every score, and the audience following at https://m.scoring.services/. Dynamic matches: HF and positions change on their own each stage.

What is the PractiScore overlay on YouTube

It is a transparent web page (OBS Browser Source) showing in real time the same data PractiScore sends to Scoring Services: overall per division, last shooter (A/C/D/M hits, time, hit factor), top bar with leaders and match sponsors. Configure at PractiScore management → Set up overlay, copy the URL and stream on YouTube. Overview: Live stream overlay. OBS guide: OBS Studio overlay.

Real example — IPSC live with OBS + Scoring Services

Professional practical shooting broadcast: stage camera, transparent overlay with scoreboard and PractiScore data updating throughout the match.

On stream and on the athlete’s phone

Live overlay elements — top ticker with leaders, CCP Open top 3 (A/C, points, %) and stage card with HF, A/C/D/M/NS/Proc hits and time

Match hotsite — squads, verify, charts and results on m.scoring.services

Last shooter on overlay — HF, points and penalties in real time

TV kiosk mode — looping scoreboard for on-site arena screens

Live PractiScore → hotsite → overlay

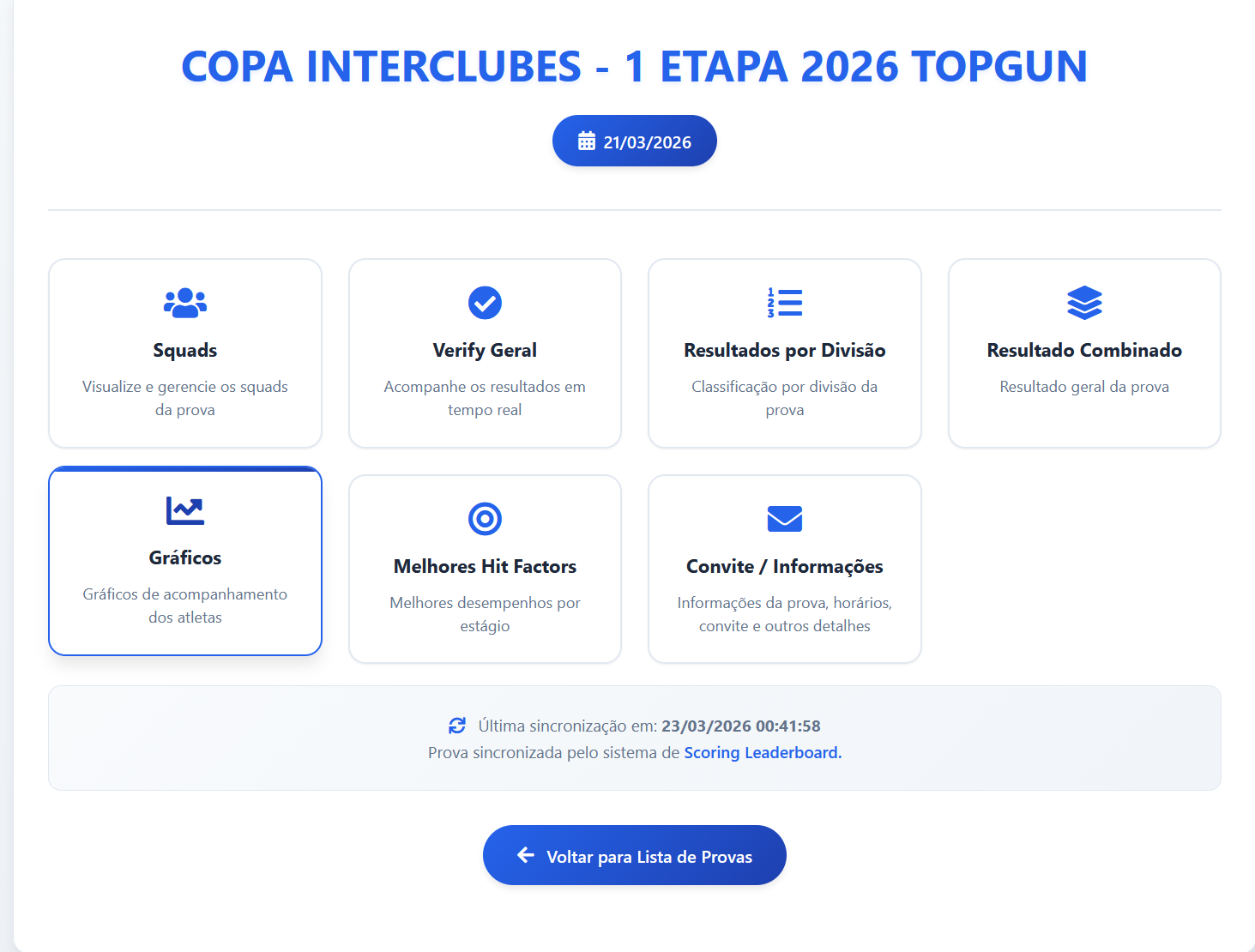

Public match hotsite — Squads, Verify, Results by Division, Combined, Charts and last Scoring Leaderboard sync bar

Match settings index — cards for Overlay config (colors, preview, URL), Sponsors (up to 8 logos) and Match logo on overlay

What makes the broadcast dynamic

Side leaderboard scrolls as athletes finish stages — overall positions change live
Last-shooter bar: A/C/D/M hits, time, hit factor and penalties (MISS, NS, PROC)
Top bar with leading athletes — highlights division title fights
Sponsors and match logo in the sidebar — club or federation branding
Scene panel: switch HUD, break and warm-up without stopping the stream

From PractiScore to YouTube in 5 steps

1. Scoring at the range
ROs score in PractiScore; ps-leaderboard sends scores to the hotsite. Guide: PractiScore leaderboard.
2. Configure overlay
On the hotsite or at PractiScore management, adjust colors, sponsors and preview. Details at OBS Studio overlay.
3. Build the OBS scene
Stage camera(s) + Browser Source with transparent 1920×1080 overlay. Enable safe areas in preview so text is not clipped on TVs and phones.
4. Connect to YouTube
In OBS: Settings → Stream → YouTube. Use your account stream key. Match as “Unlisted” before going public on a regional or national match.
5. Share with athletes
Share the match link at https://m.scoring.services/ in the stream description and event WhatsApp group. Local and remote audiences follow the same scoreboard.
Live matches

Sponsors and logo on stream

Overlay sponsors — upload PNG/JPG/WebP/SVG (max 512 KB), up to 8 logos on the right bar of the stream, optional name and link

Related pages

Frequently asked questions

What resolution for OBS Browser Source?

Use 1920×1080 with transparent background enabled. Enable “OBS safe areas” in the wizard preview to avoid clipped text on TVs and phones.

Does the overlay work with vMix and Streamlabs?

Yes. Paste the same wizard URL into a Browser/Web source — same transparency and 1920×1080 settings.

What is the per-stage scene panel for?

Switch between Full broadcast, HUD only, Break and Warm-up without changing the URL in OBS. Each stage has an “OBS URL” button to copy the correct link.

How do I set up PractiScore overlay on YouTube?

Install ps-leaderboard, sync tablets, generate the overlay URL at PractiScore management and add it as an OBS Browser Source. In OBS, set stream to YouTube. Full guide on this page and at OBS Studio overlay.

Do I need PractiScore to stream on YouTube?

The overlay shows Scoring Services data. In practice, IPSC clubs use PractiScore with ps-leaderboard for real-time scores — see PractiScore leaderboard.

Can athletes follow without watching the stream?

Yes. At https://m.scoring.services/ during the match; after closing, in the hub or Match list.

Where do I configure overlay before going live?

At PractiScore management → Edit → Overlay config or Set up overlay. OBS step by step: OBS Studio overlay.
