IPSC overlay in OBS Studio — complete live broadcast guide

How to set up OBS Studio Browser Source for IPSC matches with PractiScore: overlay URL, per-stage scenes, safe areas, sponsors and dynamic real-time scoreboard.

General overlay guide

OBS Studio is the most widely used app for IPSC clubs and federations streaming to YouTube, Facebook and Twitch. With Scoring Services you do not edit scoreboards by hand: PractiScore tablets send every score, the match hotsite updates rankings and the transparent OBS overlay shows last shooter, leaderboard and top bar — all in real time, stage by stage, from warm-up to the final stage.

PractiScore → OBS workflow shortcuts

Match management

Edit the match, open Overlay config or Set up overlay and copy the URL.

/my-account/practiscore

Live scoreboard (athletes)

Same data as the overlay — follow on your phone during the match.

m.scoring.services

Full PractiScore guide

Installation, tablets, sync and WinMSS export.

PS-Leaderboard

Per-stage wizard — from selector to OBS URL

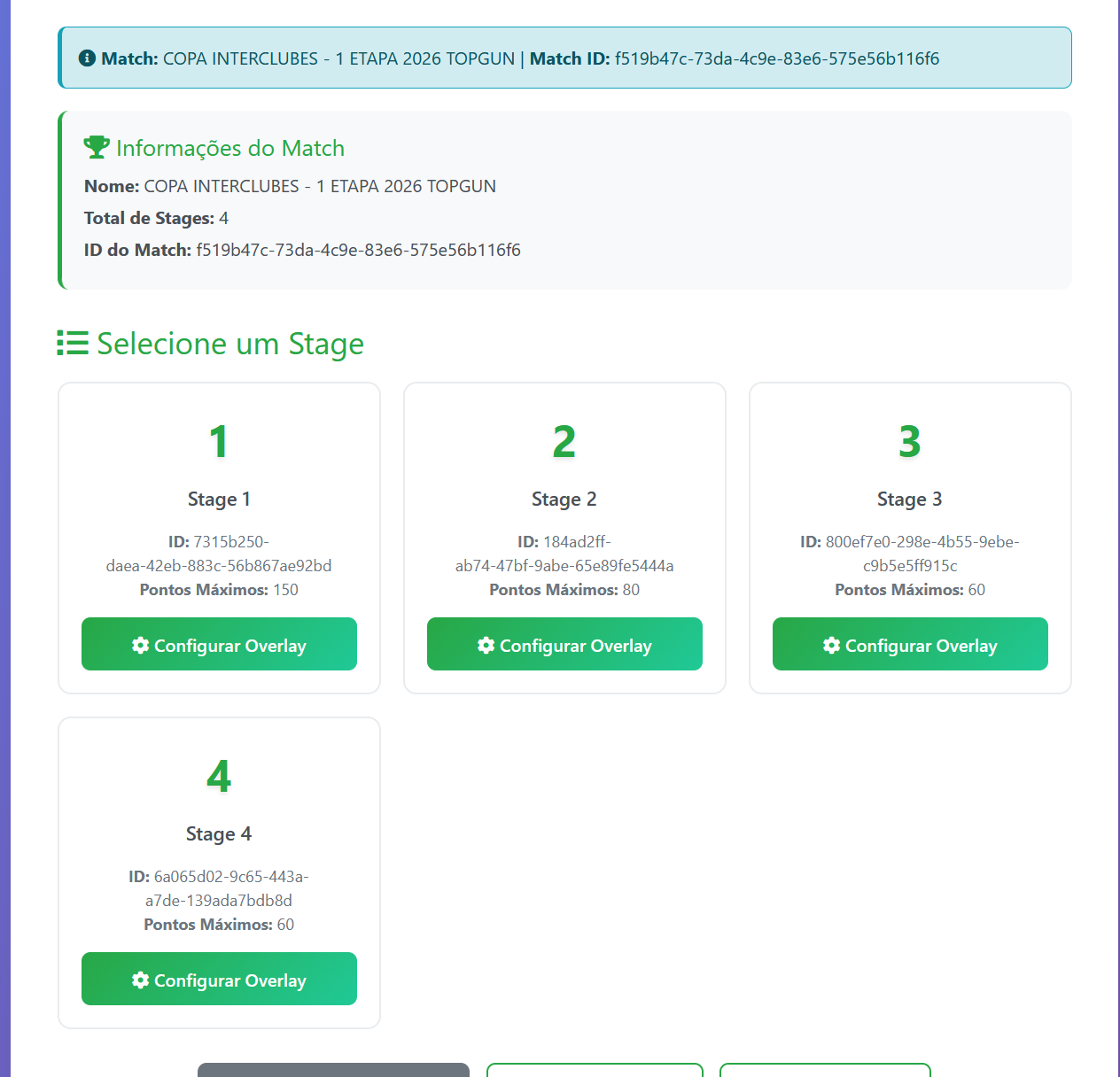

Stage selector — 4-stage match, max points per stage, each stage UUID and Configure Overlay button to generate the OBS URL

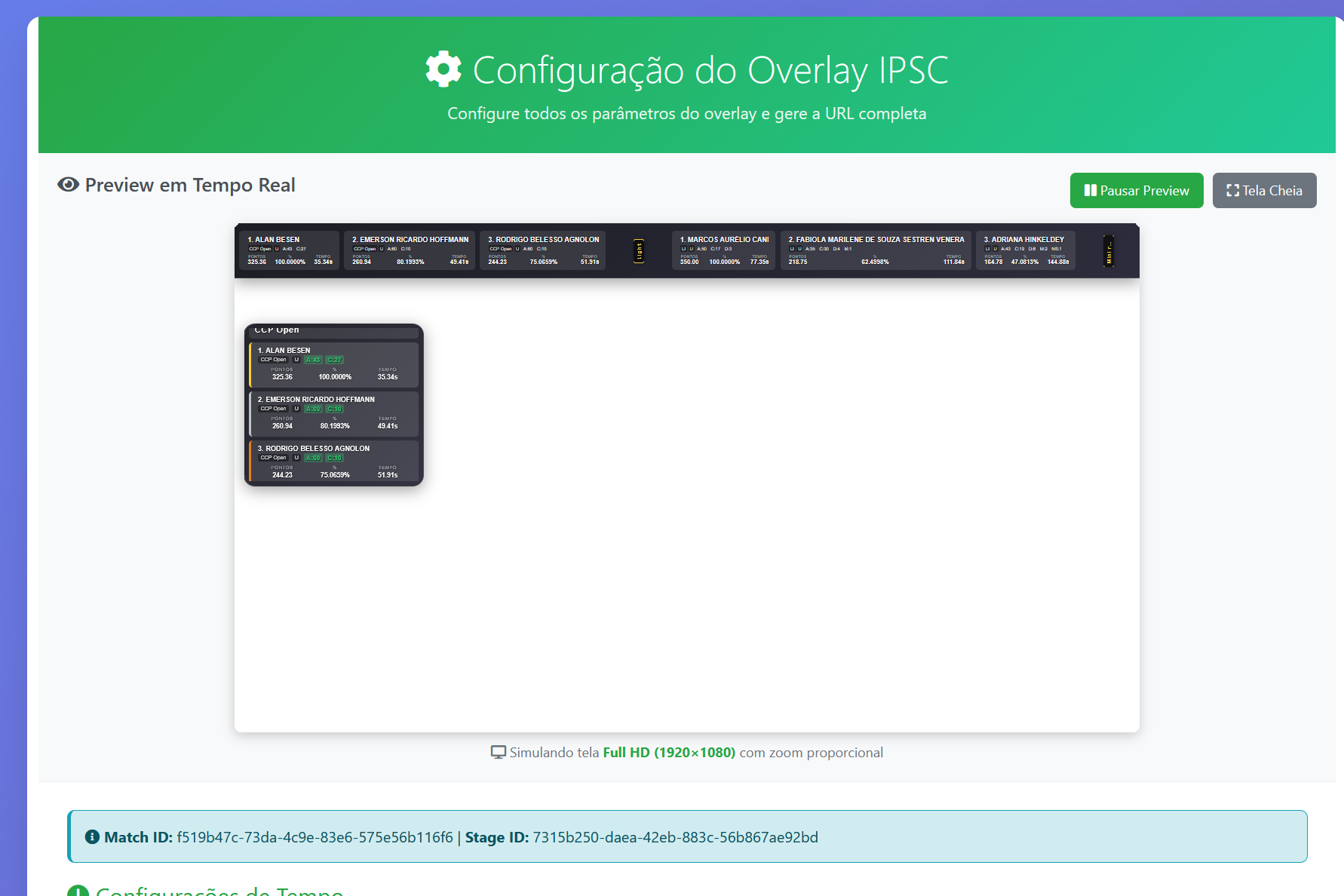

Selected stage preview — top bar with Light and Mini Rifle divisions, CCP Open top-3 widget (A/C) and Match/Stage ID footer

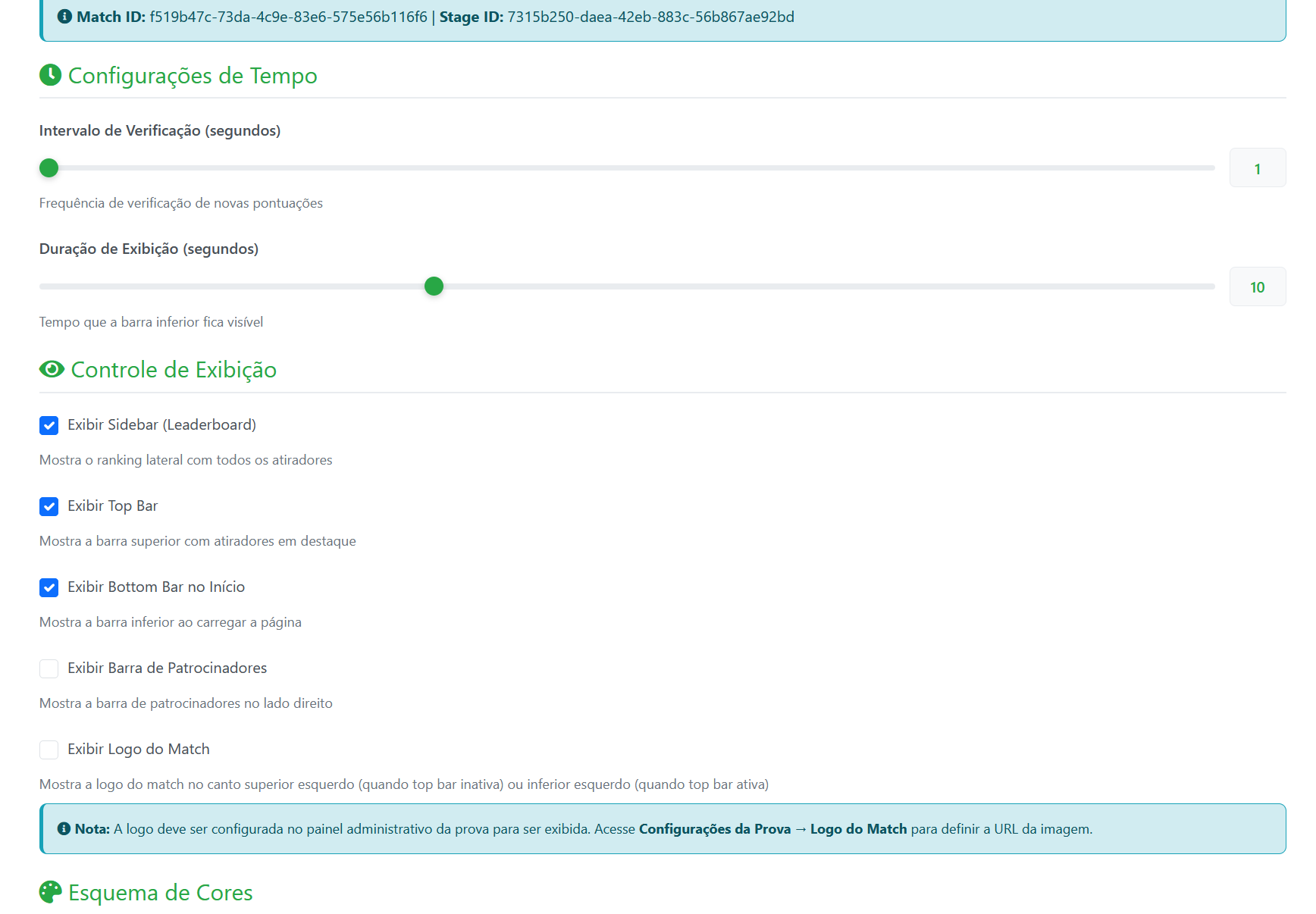

Per-stage config — 1 s poll interval, 10 s bottom bar, sidebar and top bar enabled; note about logo in match settings

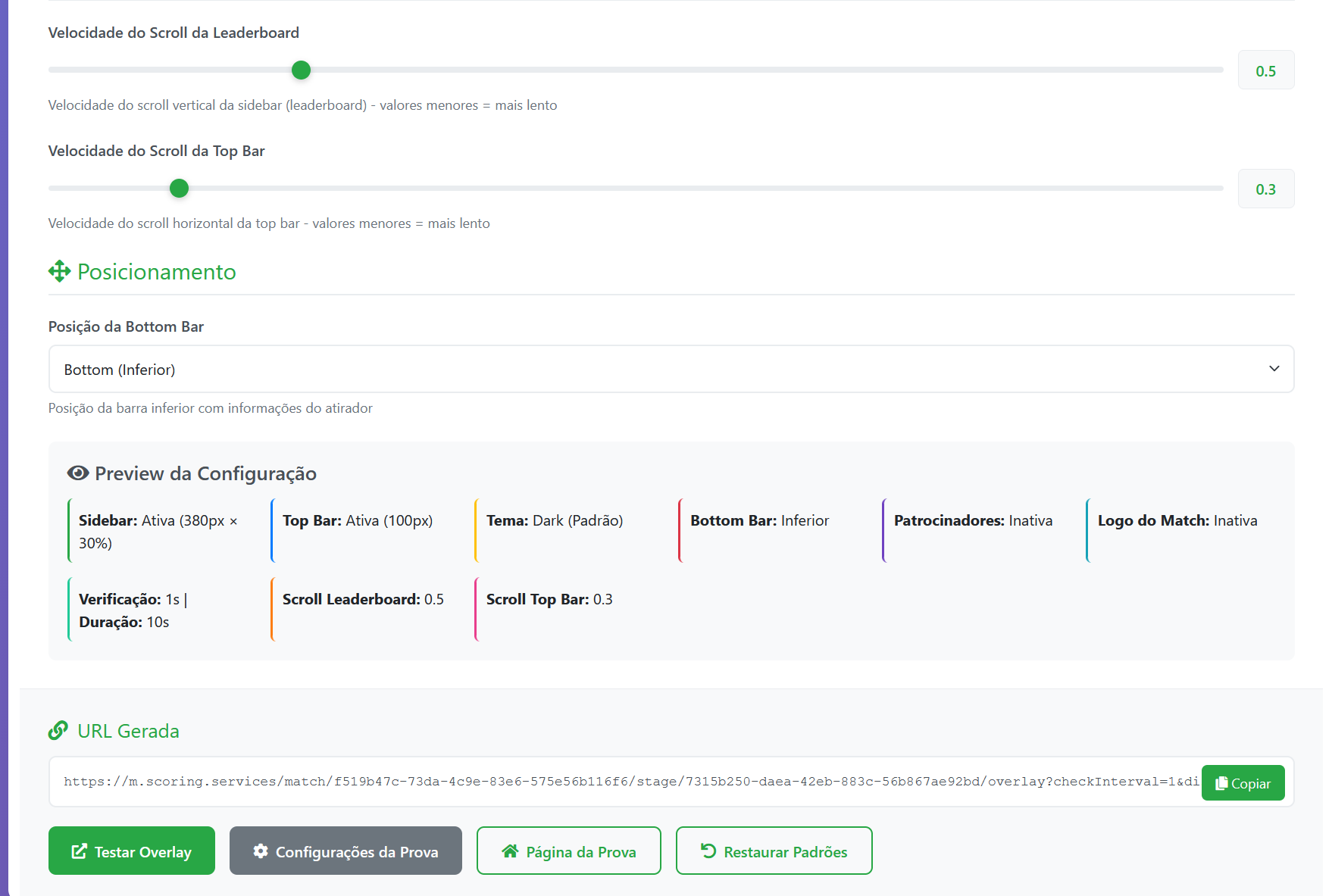

Scroll speeds (leaderboard 0.5 / top bar 0.3), bottom bar position, config summary chips and generated URL with Copy button

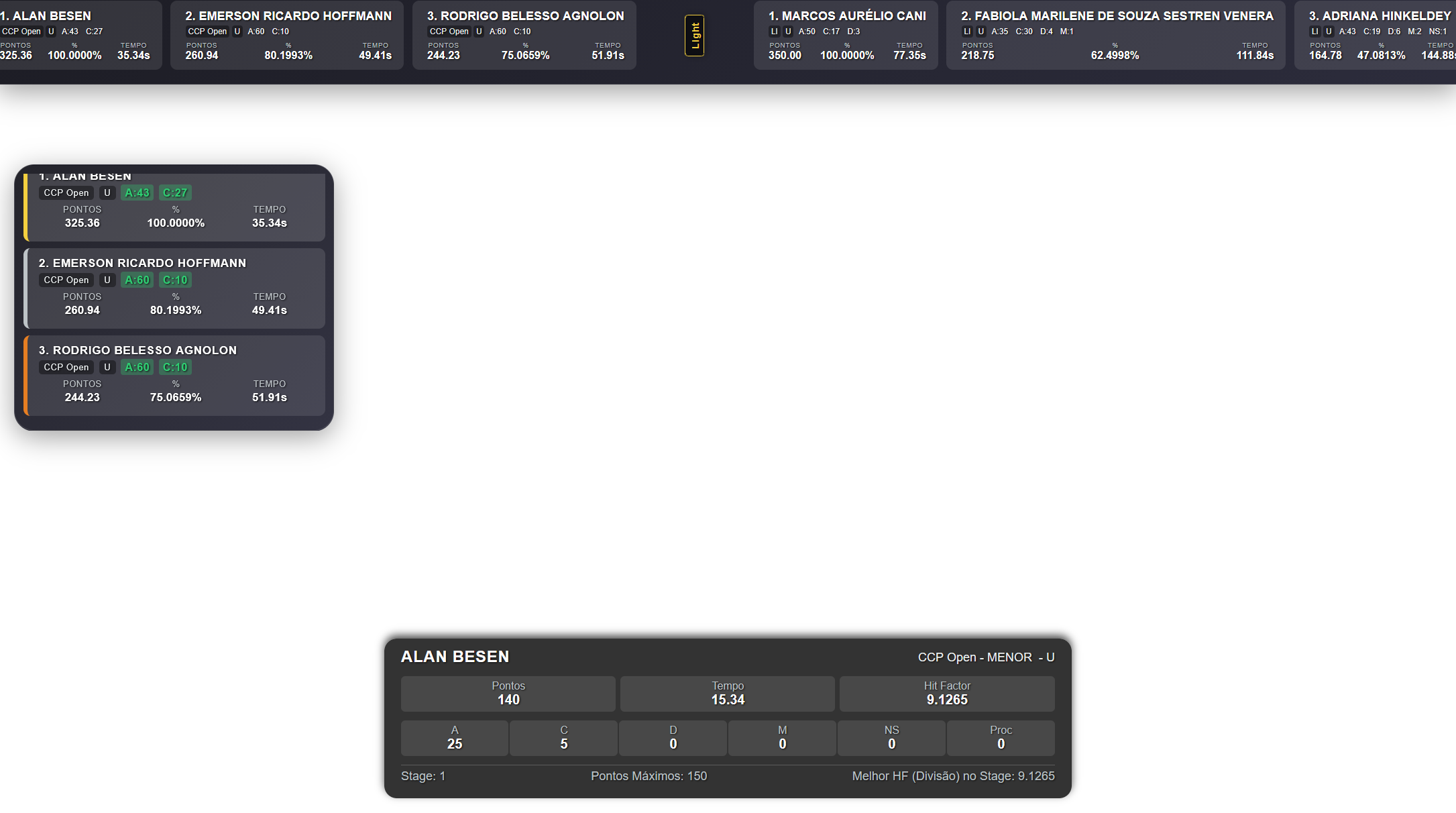

Overlay visual components — leaders ticker on top, CCP Open top 3 with A/C and stage result card (points, time, HF, penalties)

Scene panel — per-stage control for OBS

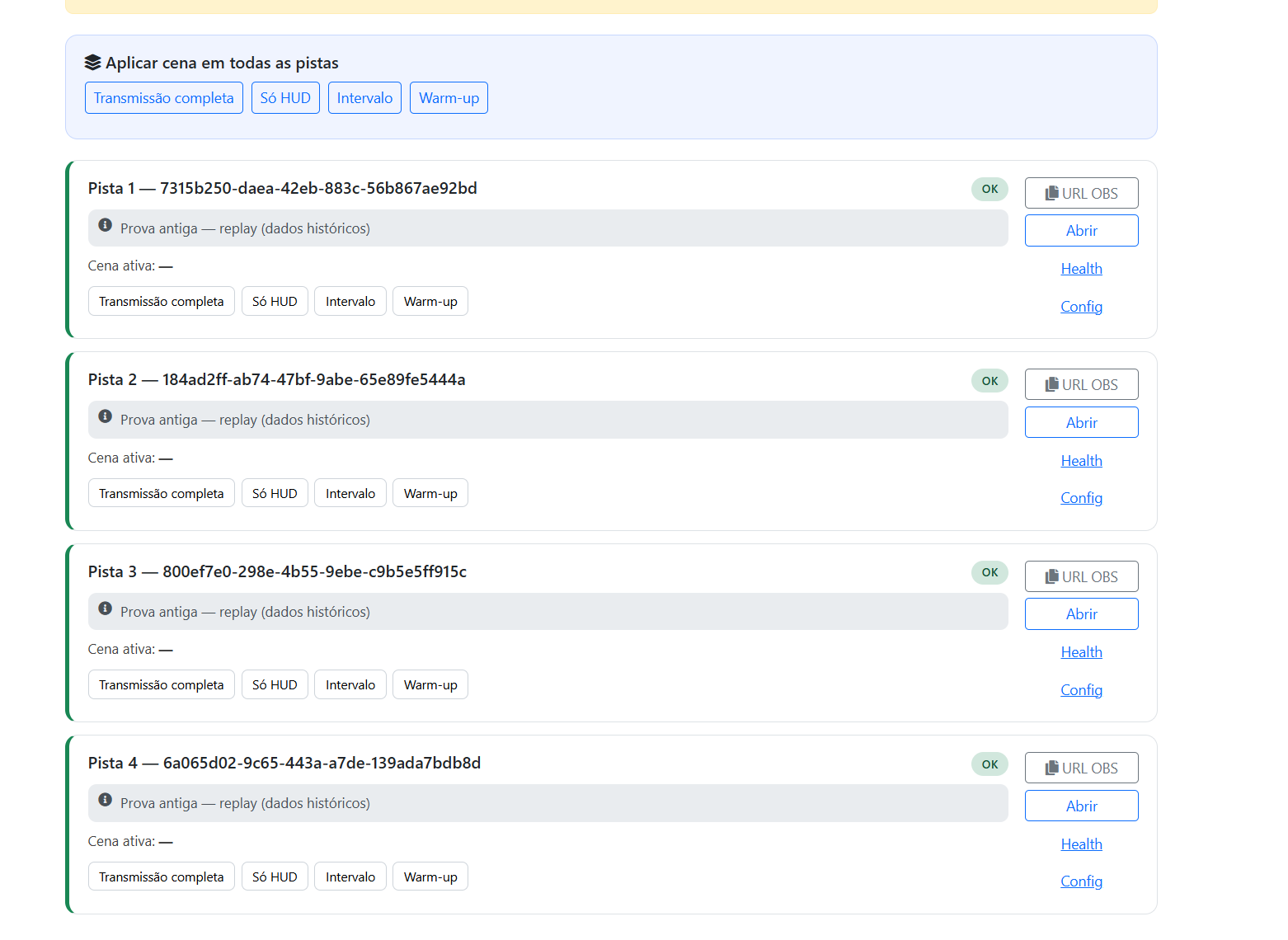

Per-stage panel — apply scene to all stages; Stage 1–4 cards with Full broadcast, HUD only, Break and Warm-up; OBS URL, Open, Health and Config buttons

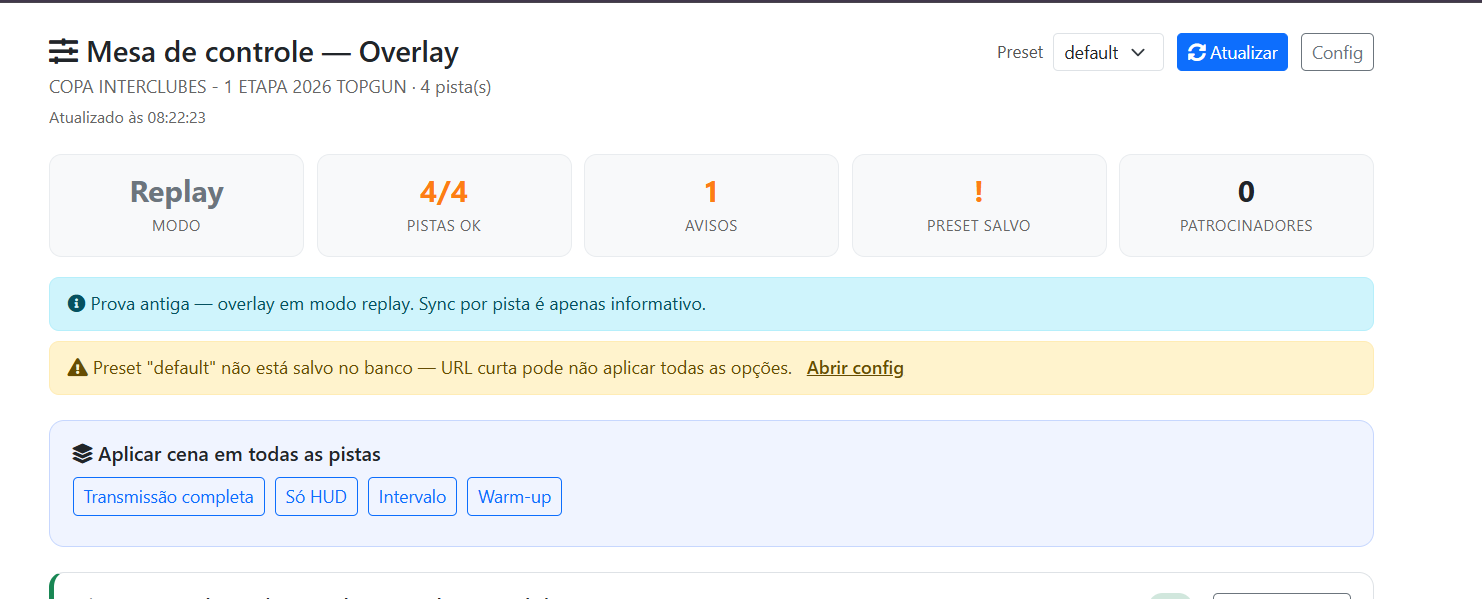

Overlay control desk — Replay status, 4/4 stages OK, default preset, sync warnings and buttons to apply a global scene on stream

Advanced IPSC overlay configuration

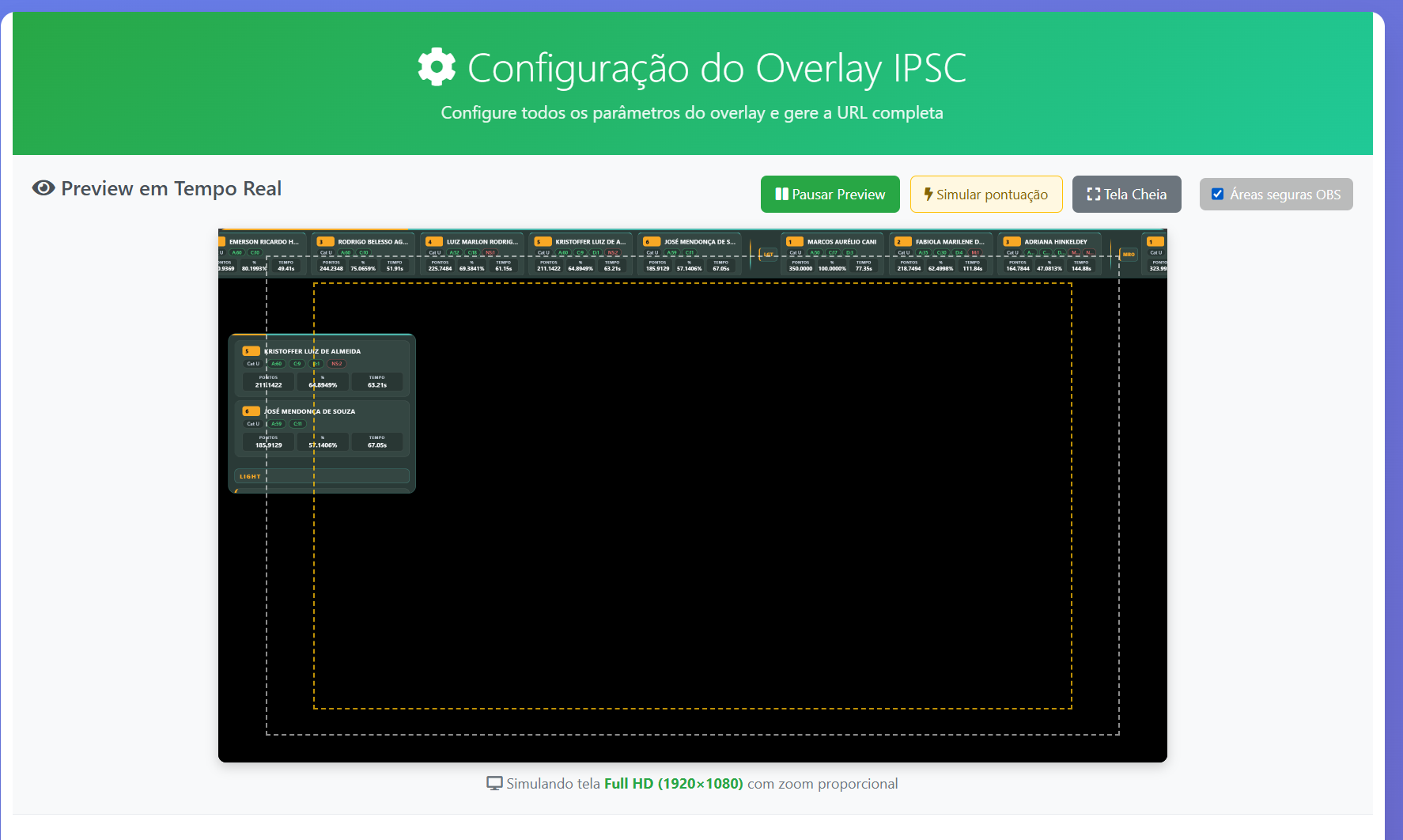

Preview with OBS safe areas — scrolling top bar, side cards, LIVE last-shooter panel (HF, A/C/D, time) and dashed 1920×1080 guides

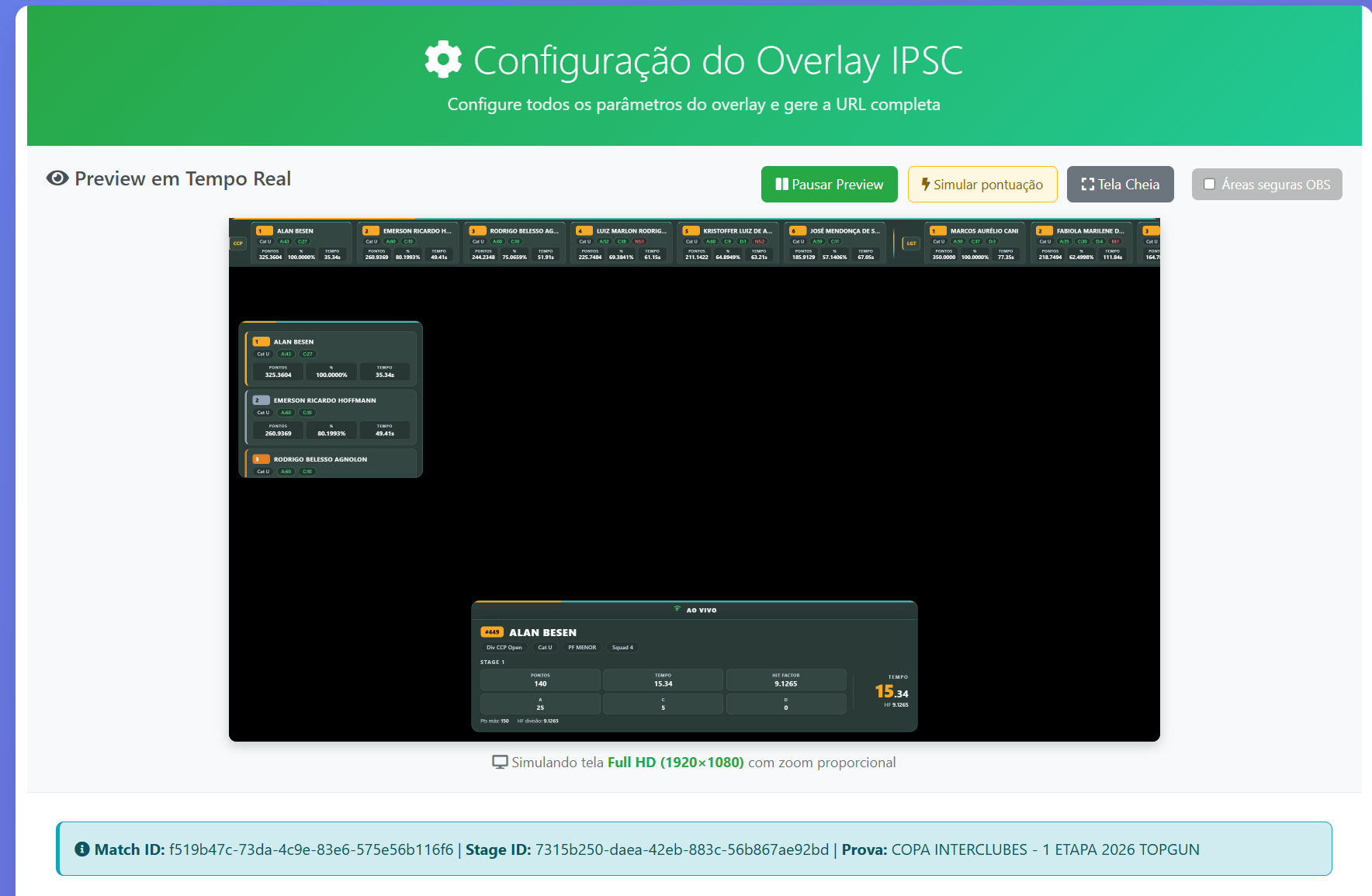

Preview with Simulate scoring — LIVE shooter card (points, time, HF, A/C/D), top bar and CCP Open widget; Pause and Full Screen buttons

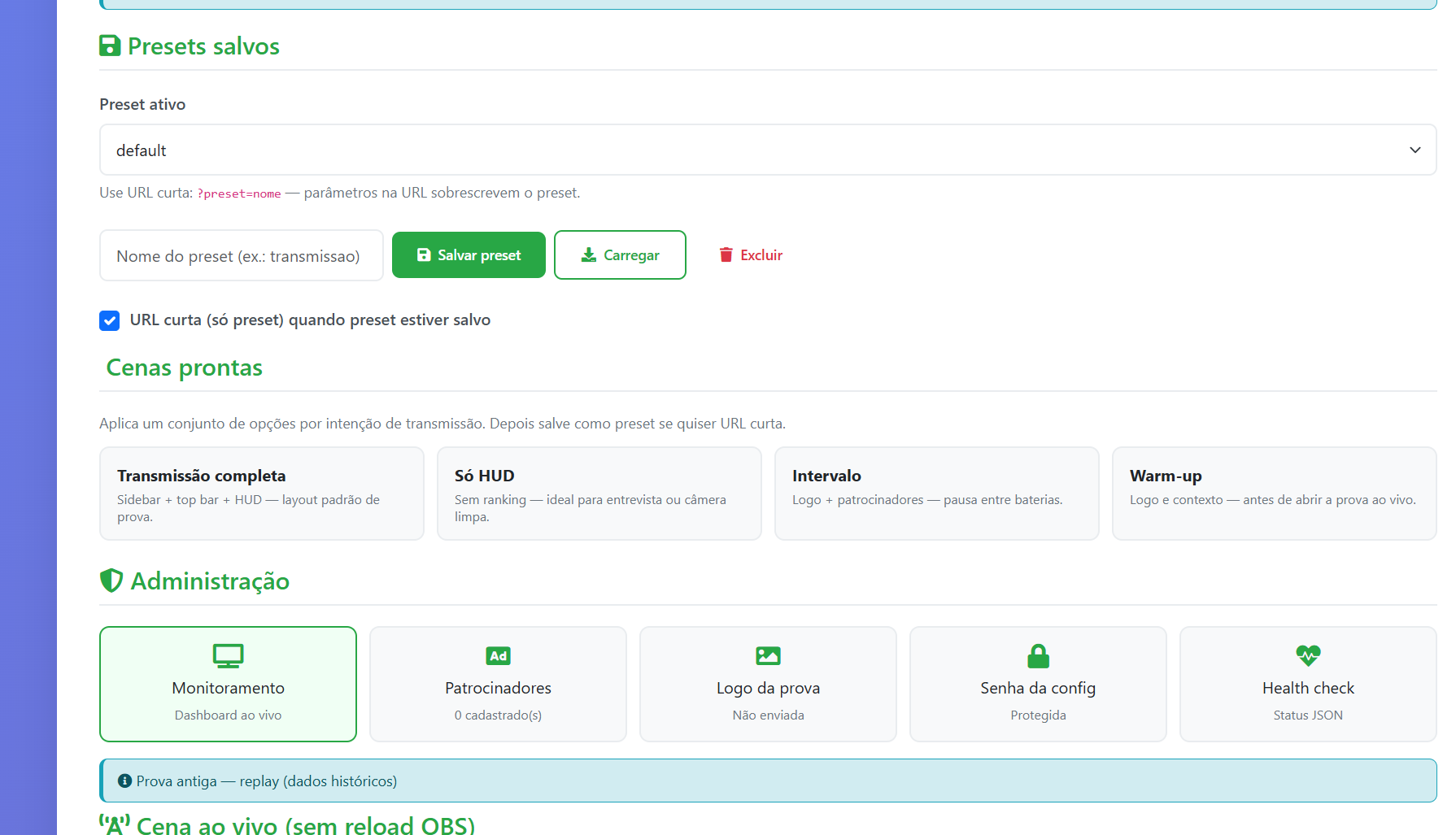

Presets and ready scenes — save preset, Full broadcast, HUD only, Break and Warm-up; Monitoring, Sponsors and Health check cards

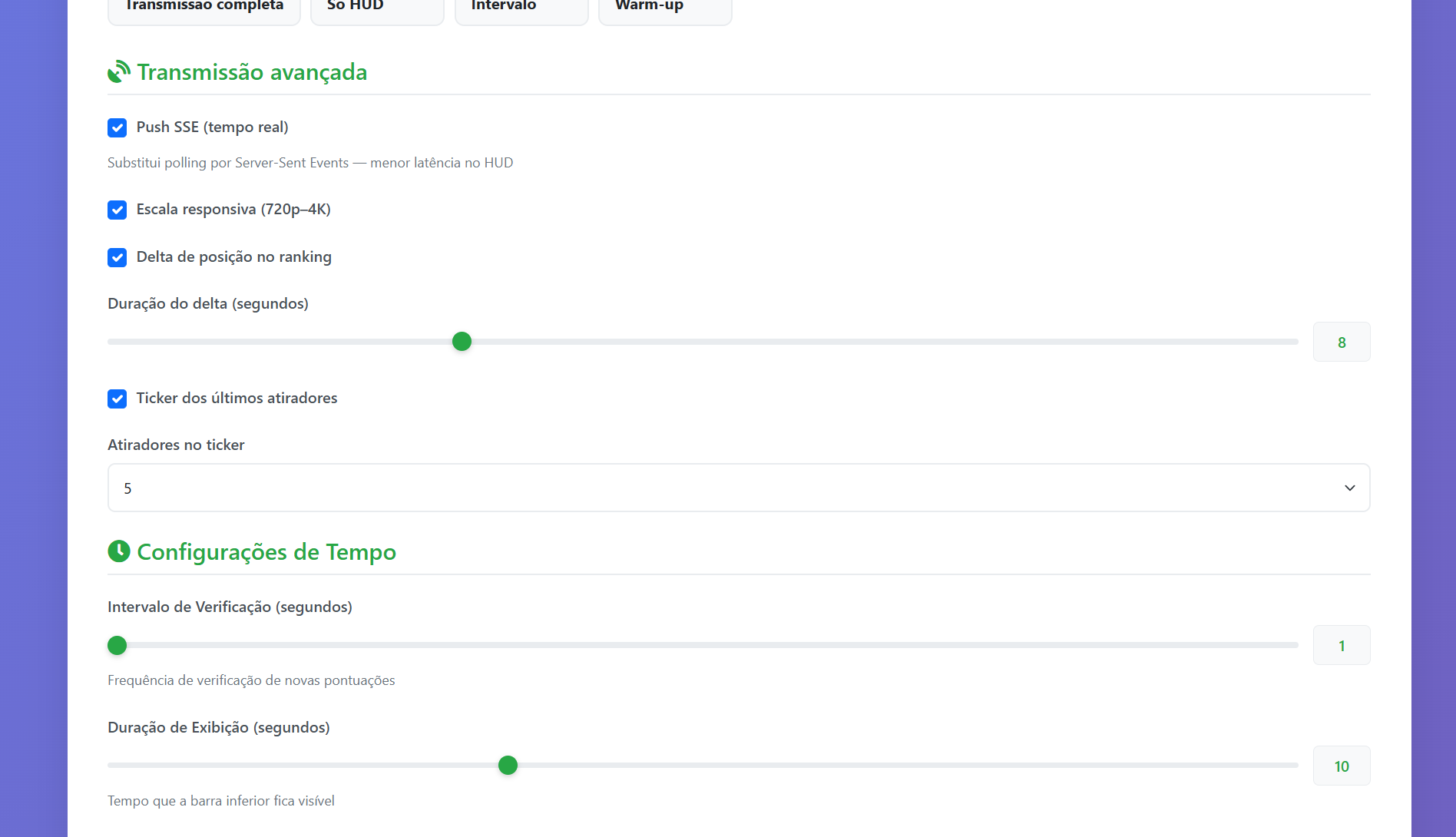

Advanced broadcast — Push SSE (lower latency), 720p–4K scaling, ranking position delta (8 s), last 5 shooters ticker and poll intervals

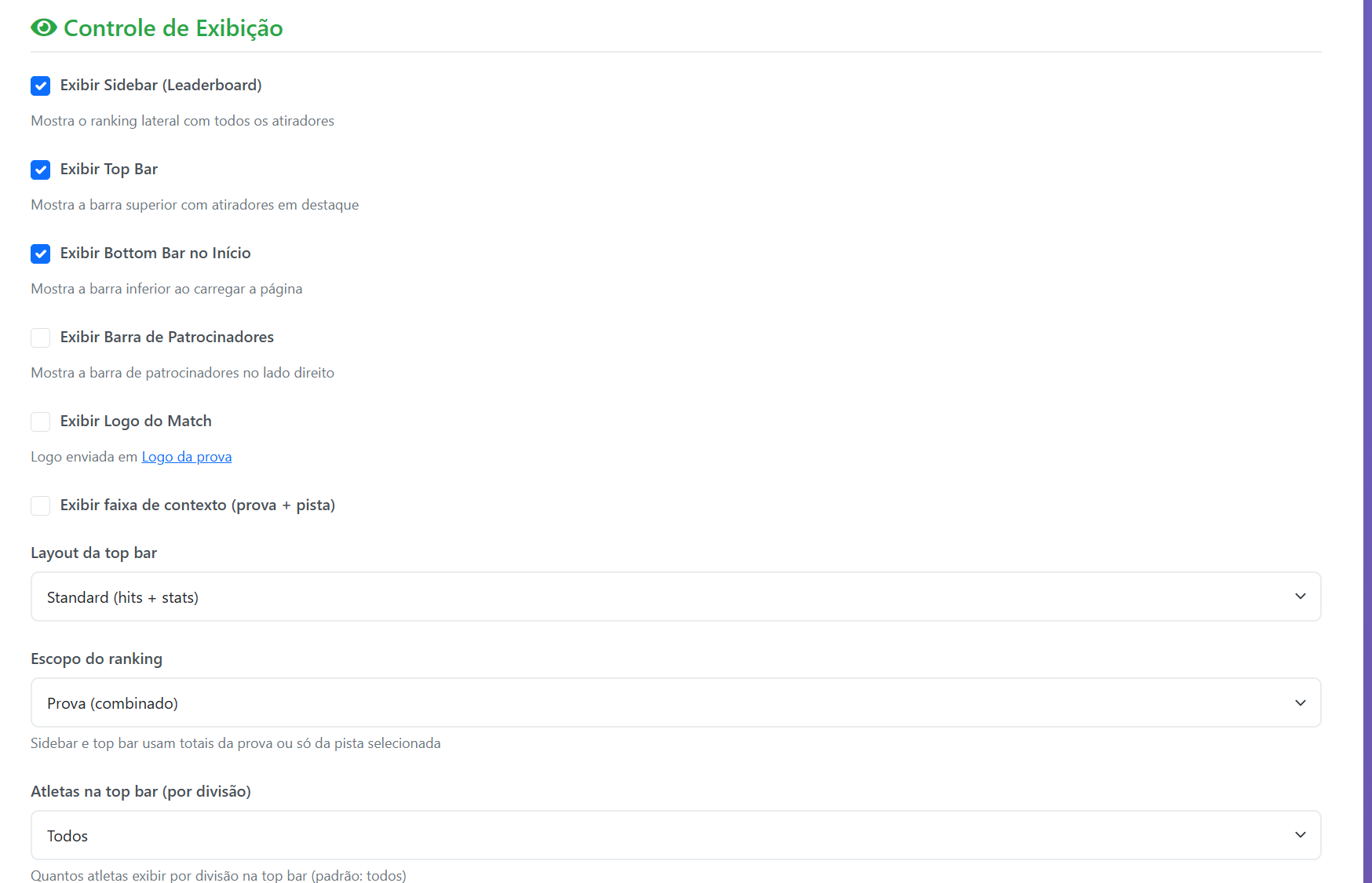

Display control — top bar layout, ranking scope (combined or stage), athletes per division and sidebar, sponsor and context band toggles

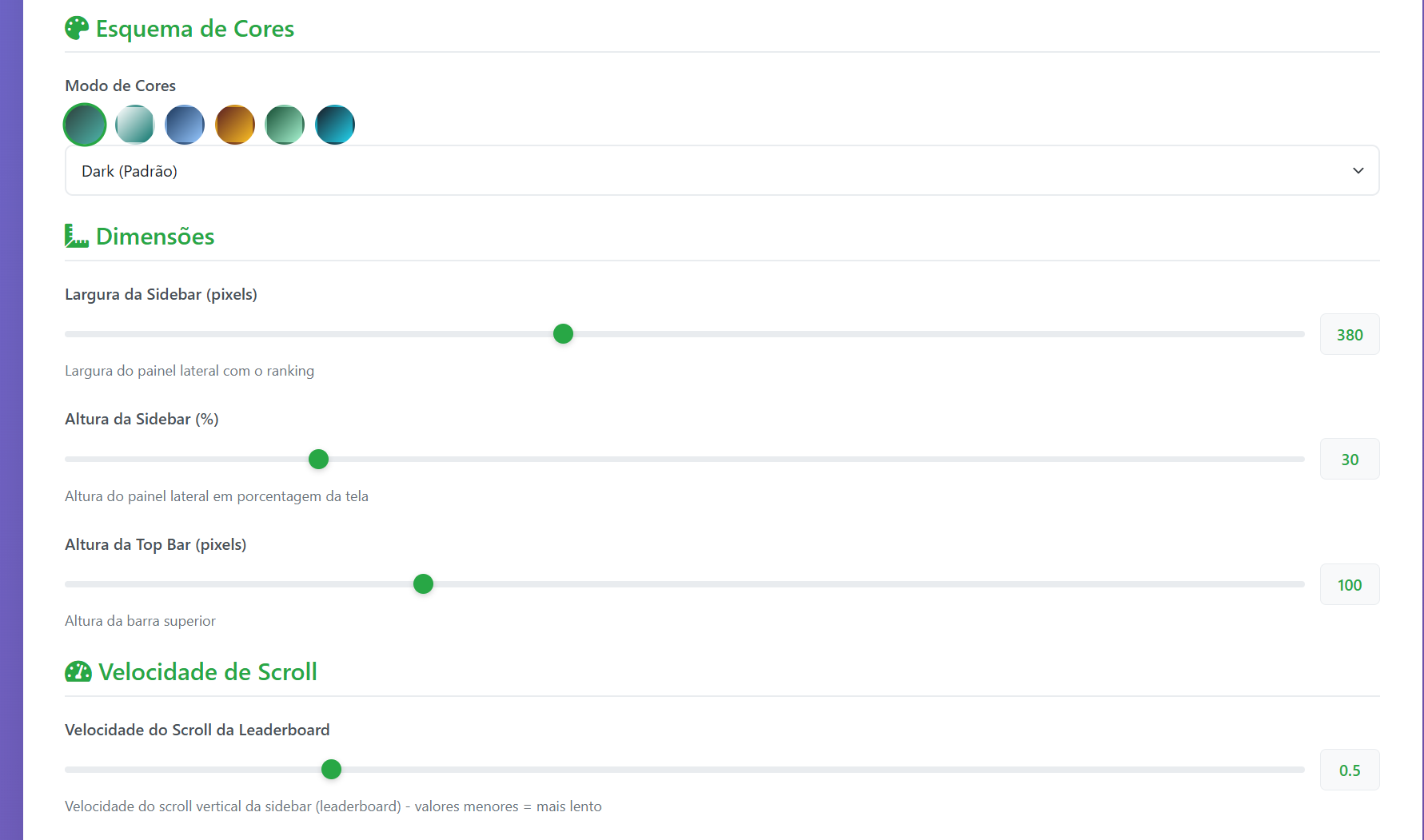

Dark color scheme, sidebar size (380 px × 30%) and top bar (100 px), leaderboard scroll (0.5) and top bar scroll (0.3) speeds

Set up Browser Source in OBS Studio

1. Prepare the match in PractiScore
Install ps-leaderboard (Installation guide), pair tablets and confirm the match appears at PractiScore management with active sync. Without data reaching the hotsite, the overlay will be blank.
2. Generate the overlay URL
At PractiScore management → Edit → Set up overlay, pick a stage and adjust sidebar, top bar, colors and logo in the preview. Copy the URL at the bottom of the wizard. IPSC variant: .../stage/{stage_id}/overlay.
3. Add source in OBS
In OBS: Add → Browser Source → paste the URL, width 1920, height 1080, disable “Control audio via OBS” and enable “Transparent background”. Place the source above the camera or video cut.
4. Use the scene panel
On the match hotsite, open the per-stage scene panel to switch between Full broadcast, HUD only, Break and Warm-up without editing the URL in OBS. Each stage has a “OBS URL” button to copy the correct link.
5. Test before going live
Use “Simulate scoring” in the overlay preview and check that the scoreboard at https://m.scoring.services/ updates. Only then start the YouTube or other platform stream — see PractiScore overlay YouTube.

vMix, Streamlabs and Prism

vMix and Streamlabs: use the same overlay URL in a Browser/Web source — transparent background, 1920×1080.
Prism (Android/iPhone): open the generated URL in the app for mobile lives with the same data.
Arena screen at the range: use kiosk mode at https://m.scoring.services/ alongside the live stream.

Frequently asked questions

What resolution for OBS Browser Source?

Use 1920×1080 with transparent background enabled. Enable “OBS safe areas” in the wizard preview to avoid clipped text on TVs and phones.

Does the overlay work with vMix and Streamlabs?

Yes. Paste the same wizard URL into a Browser/Web source — same transparency and 1920×1080 settings.

What is the per-stage scene panel for?

Switch between Full broadcast, HUD only, Break and Warm-up without changing the URL in OBS. Each stage has an “OBS URL” button to copy the correct link.
